ZP3W Series Miniature Switches

Features: *Switching capability up to 10Amp *Wire lead or cable outputs *Long mechanical life up to 10,000,000 ops *Temperature tolerance -65 to +250°F (-54 to 121°C) on standard construction. High temperature model available upon request. *Excelent resistance to harsh environments - IP67 protection

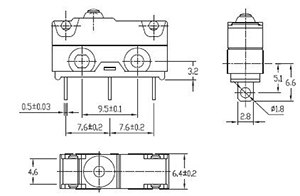

Installation dimensions:

Specifications: Voltage Ratings:　　　　30VDC, 125VAC, 250VAC Current Ratings:　　 0.1-10A 125/250VAC Service Life: Mechanical: 1,000,000 (operations) Electrical: 10,000 (operations) min. at rated current Operating temperature: Standard: -54oC~+121oC(-65oF~+250oF) High temperature: up to +204oC(400oF) Sealing:　　 IP67 for X4M Dielectric Strength: 1,000 VAC, 50/60 Hz for 1 min between terminals of the same polarity 2,500 VAC, 50/60 Hz for 1 min between current-carrying metal parts and ground, and between each terminal and non-current-carrying metal parts Insulation Resistance:　 >100MW @500VDC Sealing : IP67

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:ZP3W View Details
